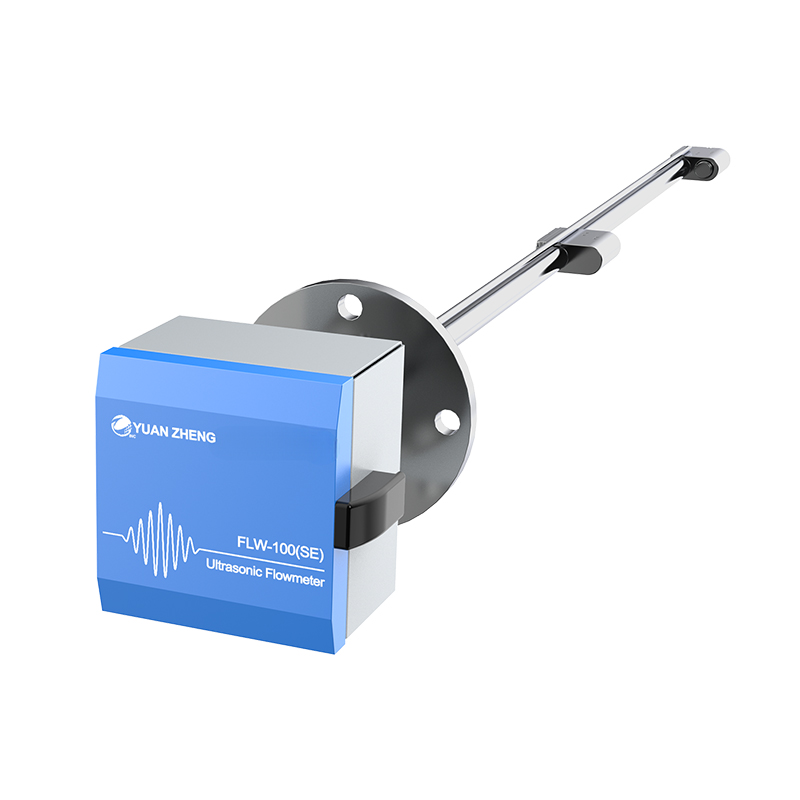

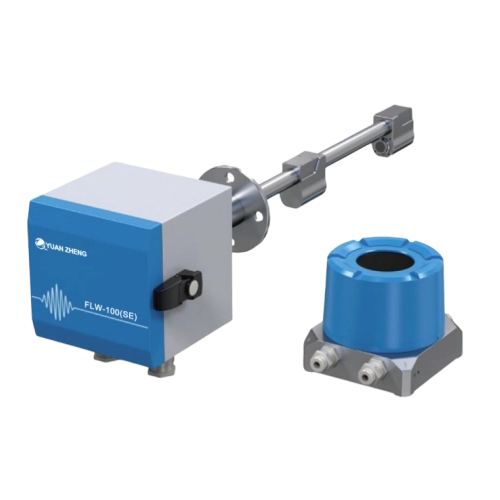

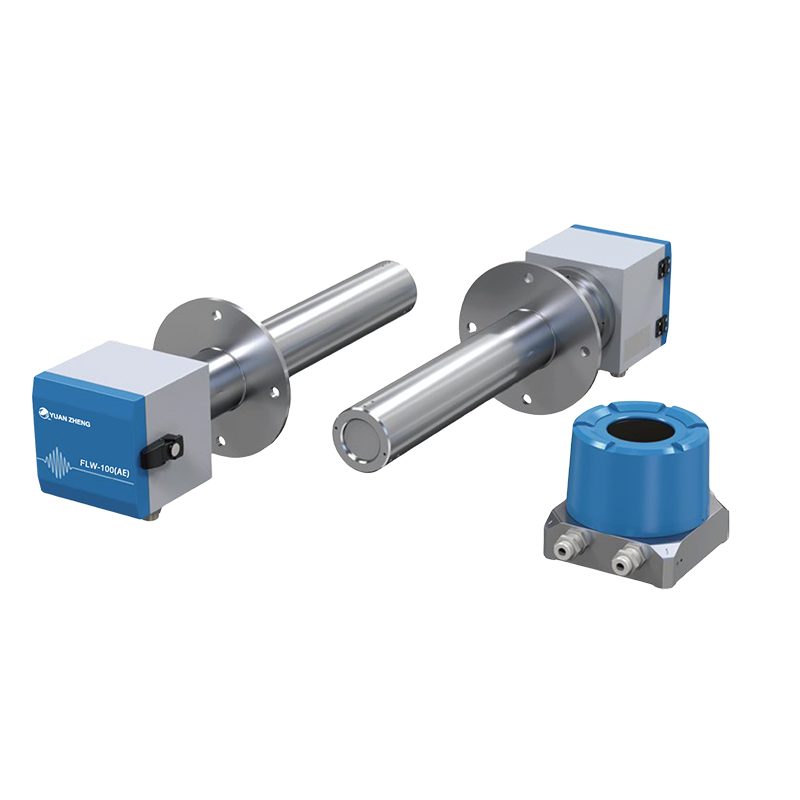

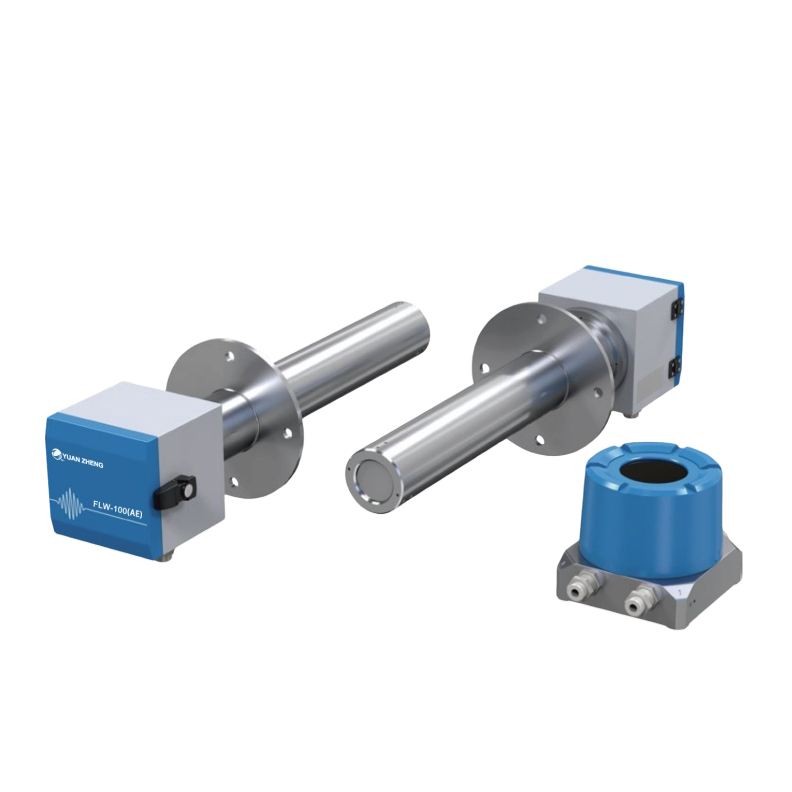

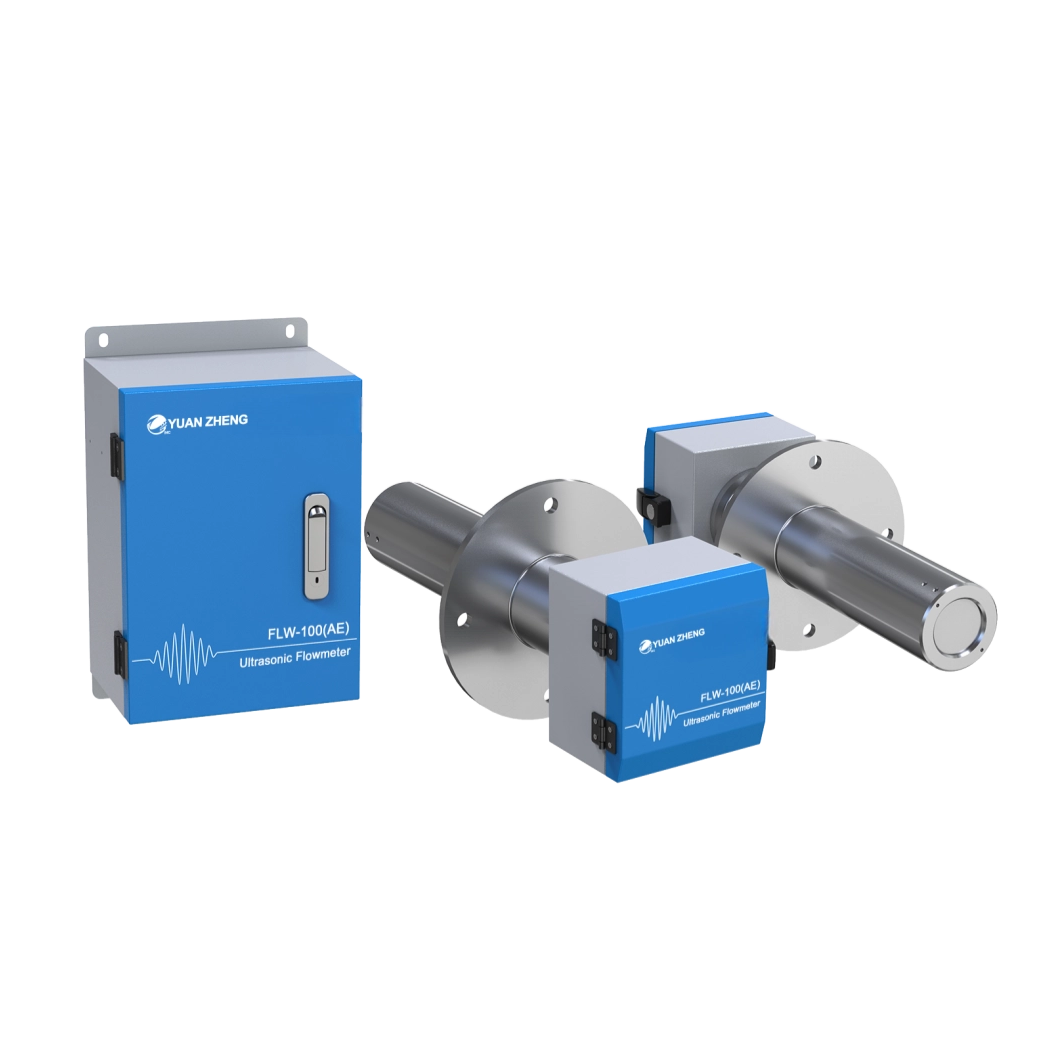

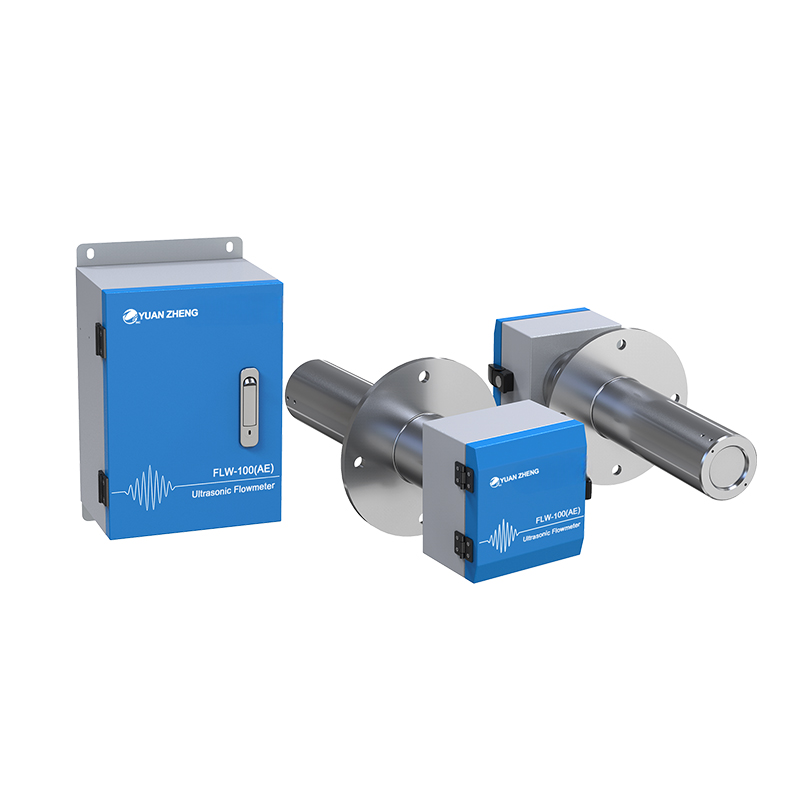

The FLW-100 Emission Ultrasonic Flowmeter is applied for the Continuous Emission Monitoring System (CEMS) for real-time continuous measurement of emission flow rate. It is developed based on the ultrasonic time-difference priciple.
B2B does not have purchase function
库存: 0
Inquire
Add to Basket

The FLW-100 Emission Ultrasonic Flowmeter is applied for the Continuous Emission Monitoring System (CEMS) for real-time continuous measurement of emission flow rate. It is developed based on the ultrasonic time-difference priciple. It utilizes a pair of ultrasonic transducers to alternately (or simultaneously) transmit and receive ultrasonic waves in opposite directions. By observing the difference in propagation time of the ultrasonic waves traveling downstream and upstream in the emission stack, the flue emission velocity can be measured. It is the most reliable device for flue emission flow monitoring.


The FLW-100 Ultrasonic flowmeter is designed based on the principle of the time difference of flight of ultrasonic waves. There is a pair of ultrasonic transducers installed inside the pipeline, facing each other and forming a certain angle with the direction of the flue emission flow. Under the influence of the flue emission flow, the flight time of the ultrasonic wave traveling downstream is shortened, while the flight time of the ultrasonic wave traveling upstream is extended. The higher the flue emission flow velocity, the bigger the difference in flight time.

Through measuring the flight time difference of the ultrasonic waves, the flue emission flow velocity can be calculated. This velocity is the average velocity along the path of the ultrasonic wave. Combined with the cross-sectional area of the pipeline at the measuring point, the instantaneous flow velocity can be calculated.



Real-time measurement of temperature, pressure, velocity, and flow rate of flue gas in environments with large diameter, low velocity, high dust content, high temperature, and high humidity. eg. coal chemistry, petrochemical, steel plant, metallurgy, cement plant, waste incineration.


Measuring Performance

Components

Measuring Method

Measuring Range

Measuring Accuracy

Response Time

Flow velocity

Ultrasonic time-difference

0…45 m/s

Detection limit:

0.05 m/s

Accuracy:

< ±0.1m/s

Repeatability:

< ±1% (flow velocity > 5m/s)

< ±0.05 m/s (flow velocity ≤ 5m/s)

< 1s

Pressure (option)

Pressure transducer

-10…10 kPa

±1%FS

< 1s

Temperature (option)

Thermistor

-50…500 ℃

±0.5℃

< 8s

Working condition


Non explosive-proof type

Explosive-proof type

Diameter of the chimney

AE: 0.15m~1.5m, 1.5m~13m;

SE: 0.5m~4m

Probe material

SS 316L

Probe length

Customized

Flue gas temperature

AE: -40℃ ~150℃ , -40℃ ~450℃

SE: -40℃ ~150℃

Ambient temperature

-20℃ ~60℃

Power supply

220VAC, 50Hz

Power consumption

< 40W

< 35W

HMI

LCD screen, Thin-film keyboard

OLED screen, Magnetic keyboard

Protection grade

IP65

IP65

Explosive-proof grade

/

Ex db IIC T6 Gb

Analog input/output

4×4~20mA output, 2×4~20mA input

2×4~20mA output

Digital input/output

5×digital output, 4×digital input

2×digital output

Communication interface

1×RS232,1×RS485

Communication protocol

ModBus, can be customized
