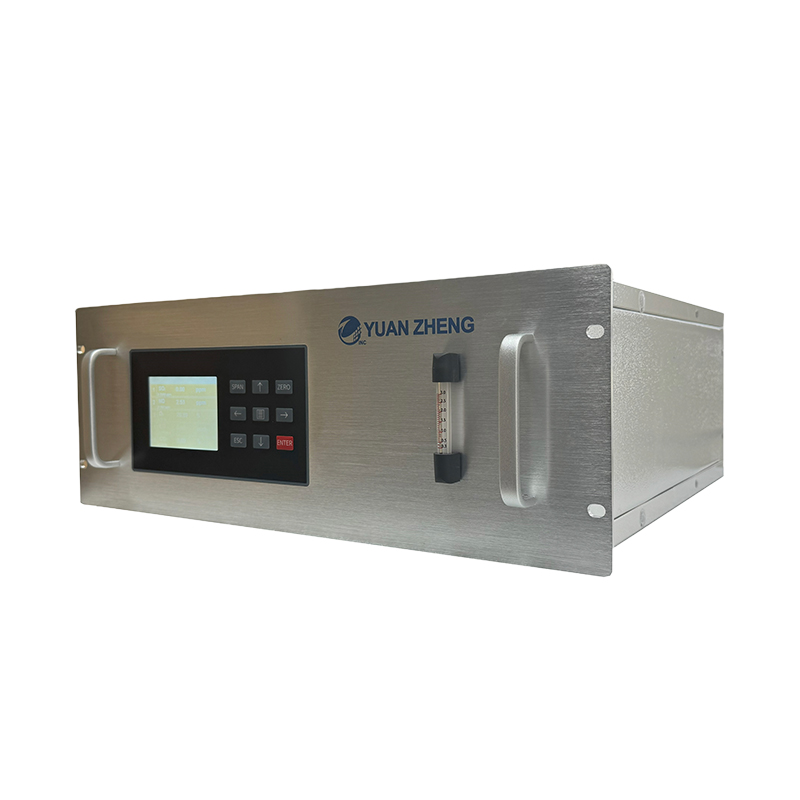

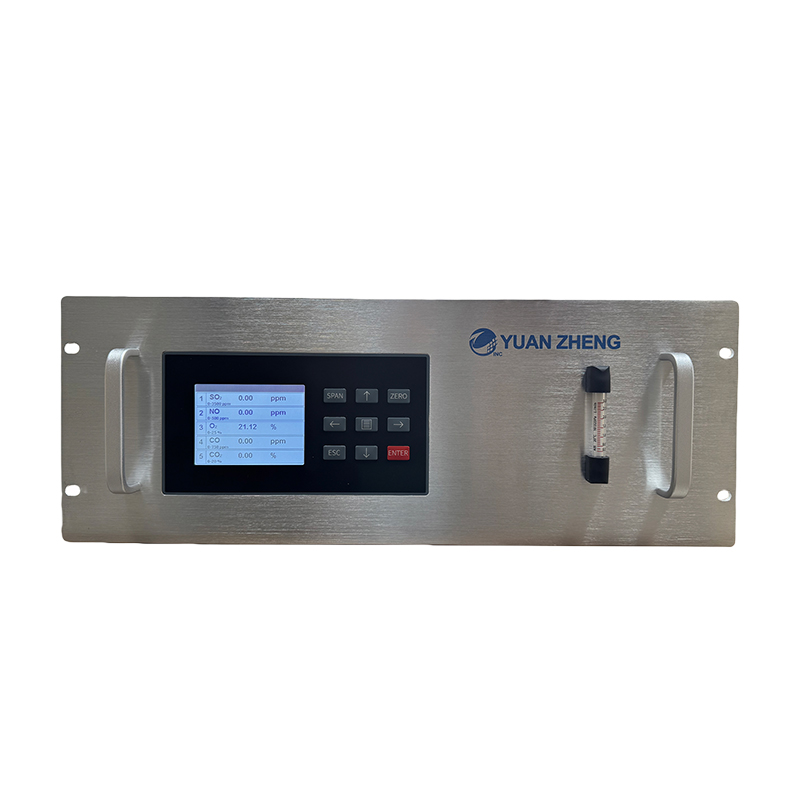

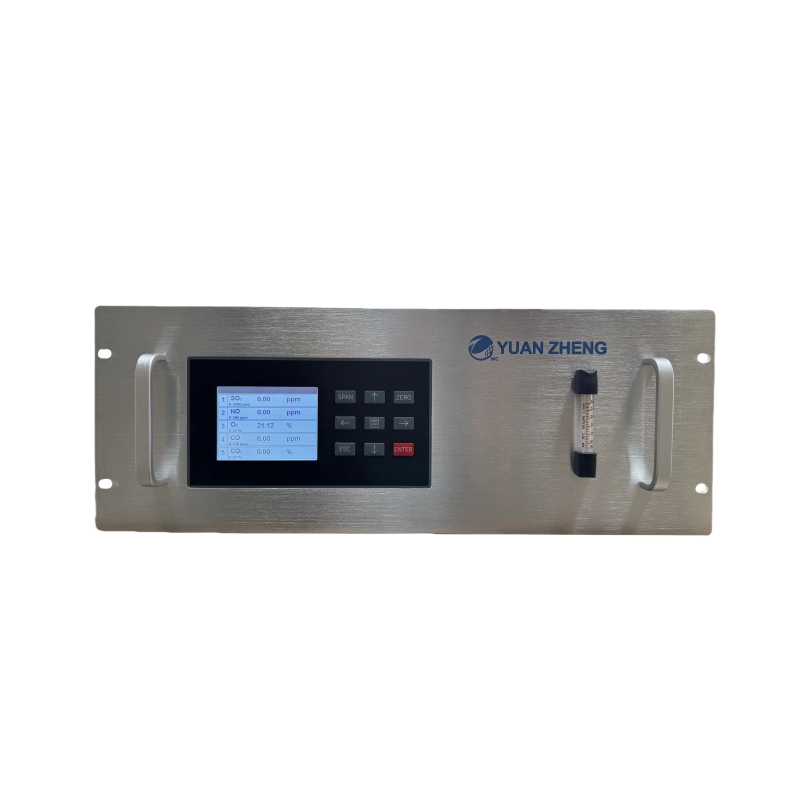

EM-5 Gas Analyzer

EM-5 gas analyzer is applied for online gas analysis of industry stack emissions. It is combined with two advanced measuring technologies: UV Differential Optical Absorption Spectroscopy (UV-DOAS) technology  +  Non-Dispersive Infrared (NDIR) technology.

The analyzer can measure the gas concentration of SO2, NO, NO2, CO, CO2, O2  simutanuously. Other gas components like NH3, Cl2, H2S can also be measured through configuring modules. One analyzer can measure up to 5 gas components  simutanuously. The analyzer is featured with low detection limit, high measurement accuracy and reliability, fast response.

Features

•      Adopt Ultraviolet Differential Optical Absorption Spectroscopy (UV-DOAS) + Non-Dispersive Infrared (NDIR) technology .

•      Long optical path measuring chamber (15m optical path), high sensitivity.

•      The measuring chamber adopts multiple reflection technology, detection limit as low as 0.1 ppm;

•      The pulsed xenon light source has more than 10 years service life.

•      The NO and NO2 can be measured simultaneously, without the converter;

•      The analysis module has no optical moving parts and is not affected by vibration;

•      Constant temperature and heating companion, avoid the influence of temperature;

•      Not affected by background components such as H2O, CH4, CO, NH3, dust, etc

•      No cross interference between measured gases;

•      Customizable to meet the OEM and ODM needs for customer.

Application

Typical application of industry process

•      Continuous flue gas emission monitoring for power plants (analyze SO₂, NOx, CO, CO₂ and O₂);

•     DeSOx process monitoring (analyze SO₂ and O₂)

•     DeNOx process monitoring (analyze NOx, and O₂)

•     Continuous flue gas emission monitoring of waste incineration (analyze SO₂, NOx, CO, CO₂ and O₂)

•     Trace Cl2 analysis in PVC process and titanium dioxide production process in chlor-alkali plants (analyze Cl₂)
