AQS-600 Air Quality Monitoring System is an online environmental monitoring system. It utilizes multiple high precision gas sensors. It can online monitor PM10, PM2.5, SO2, NO2, O3, CO, TVOC, temperature, humidity, wind direction, wind speed, ambient pressure, noise of the ambient environment. It provide data support for grid platform monitoring.

  • AQS-600

  • YUAN ZHENG

B2B does not have purchase function
库存： 0
Inquire
Add to Basket

AQS-600 Air Quality Monitoring System is an online environmental monitoring system. It utilizes multiple high precision gas sensors. It can online monitor PM10, PM2.5, SO2, NO2, O3, CO, TVOC, temperature, humidity, wind direction, wind speed, ambient pressure, noise of the ambient environment. It provide data support for grid platform monitoring.

It can be quickly configured with different measuring modules according to the requirement. The system is equipped with temperature control system and sensing module to improve the environmental adaptability of the system and ensure the accuracy of monitoring data. Compared with conventional air stations, AQS-600 can achieve high-density grid layout, and air pollution monitoring with high spatial and temporal resolution.

AQS-600 can provide environmental pollution source tracking and pre-warning and prediction. It is effectively in providing environmental monitoring data, so as to support the pre-warning and prevention of environmental air pollution.


AQS-600 Air Quality Monitoring System-4

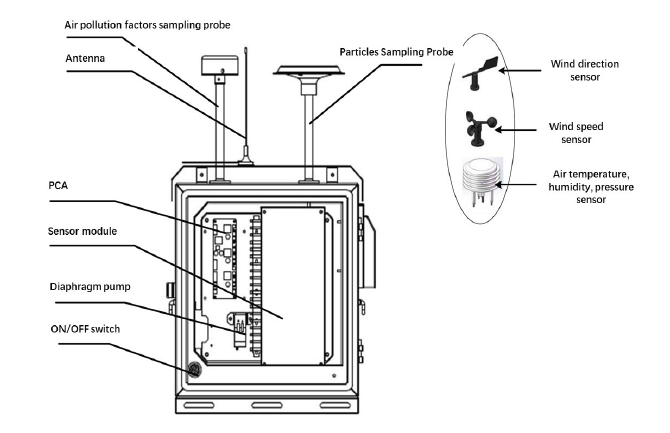

Configuration

The system is mainly composed of below parts.

•      High-sensitivity electrochemistry pollutant detection module;

•      Light scattering particulate detection module;

•      PID measuring module for TVOC;

•      Meteorological five-parameter sensors;

•      Communication modules;

•      Power supply devices


结构图


Features

•        Flexible configuration with various sensors for multiple monitoring parameters;

•        Compact design. Easy installation and maintenance. grid-based installation, high cost-efficiency;

•        Measuring unit can be selected. Easy to use HMI, real-time data reading, sampling time setting,

             temperature setting, sensor calibration function, etc;

•        Automatic self-diagnosis, long maintenance interval, low operation and maintenance cost;

•        Built-in GPRS, large capacity of data storage and data uploading;

•        Support laboratory calibration and on-site calibration;

•        Support remote software upgrading


Application

•        Air quality monitoring for Petrochemical industrial park area and boundary

•        Air quality monitoring for grid-based urban area

•        Air quality monitoring for village & small regions

•        Air quality monitoring for road traffic

•        Air quality monitoring for emergency air pollution


Measuring principle:

Electrochemical (SO2 ,NO2 , CO,O3 );

Light scattering (PM2.5 , PM10 );

PID (TVOC)

Measuring range:

SO2 ,NO2 , O3 : 0~500 nmol/mol;

CO: 0~20μmol/mol;

PM2.5 , PM10 : 0~1000 μg/m3;

TVOC: 0~5μmol/mol

Extensible factors:

H2S, CO2, HCl, NH3, noise, etc

Indication error:

≤10%F.S. (SO2 ,NO2 , CO,O3 TVOC)

Sampling method:

Built-in air pump

Ambient temperature:

-20~50°C

Ambient humidity:

0~100%RH

Ambient pressure:

1 ATM

IP grade:

IP56

Power supply:

200V~240V, 50/60Hz, optional solar panel

Power consumption:

≤ 10W

Communication interface:

DTU(GPRS/4G)

HMI:

7" LED screen, Outdoor LED screen (optional)

Storage:

with SD card, support data storage for 1 year

Dimension:

350(W)mm × 203(D)mm × 416(H)mm (the cabinet)
