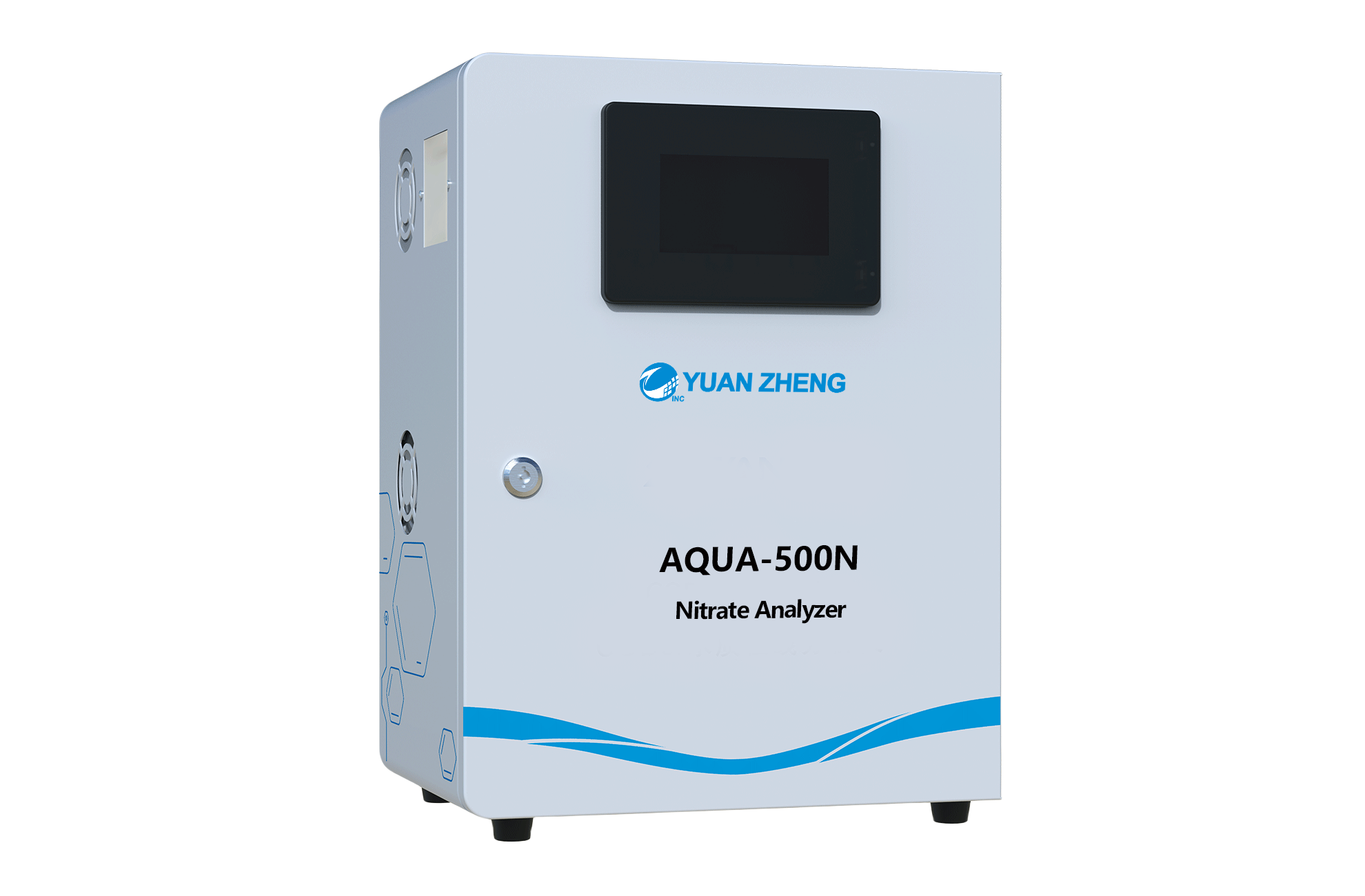

The AQUA-500N Nitrate Online Analyzer is developed based on ultraviolet spectrophotometry technology. It is used to measure the nitrate nitrogen content in water sample. It quantitatively determines nitrate nitrogen by utilizing the absorption of nitrate ions at a wavelength of 220nm. Dissolved organic substance absorbs at 220nm, whereas nitrate ions do not absorb at 275nm. Therefore, an additional measurement is taken at 275nm to correct the nitrate nitrogen value.
Measuring principle
Ultraviolet Spectrophotometry
Features
• High reliability and strong resistance to turbidity interference;
• Equipped with self-diagnostic function;
• Featured alarm functions, quality control functions, and reverse control functions;
• High detection accuracy, low detection limit, and minimal long-term drift;
• Equipped with highly integrated single-channel valve island, allowing for individual valve maintenance, disassembly, and cleaning
• Can be expanded to 24 hr real time monitoring
• New advanced measurement technology. Not affected by high color, high suspended solids, numerous bubble
Application
Determination of nitrate nitrogen concentration in fields such as environmental pollution sources, surface water, and groundwater
