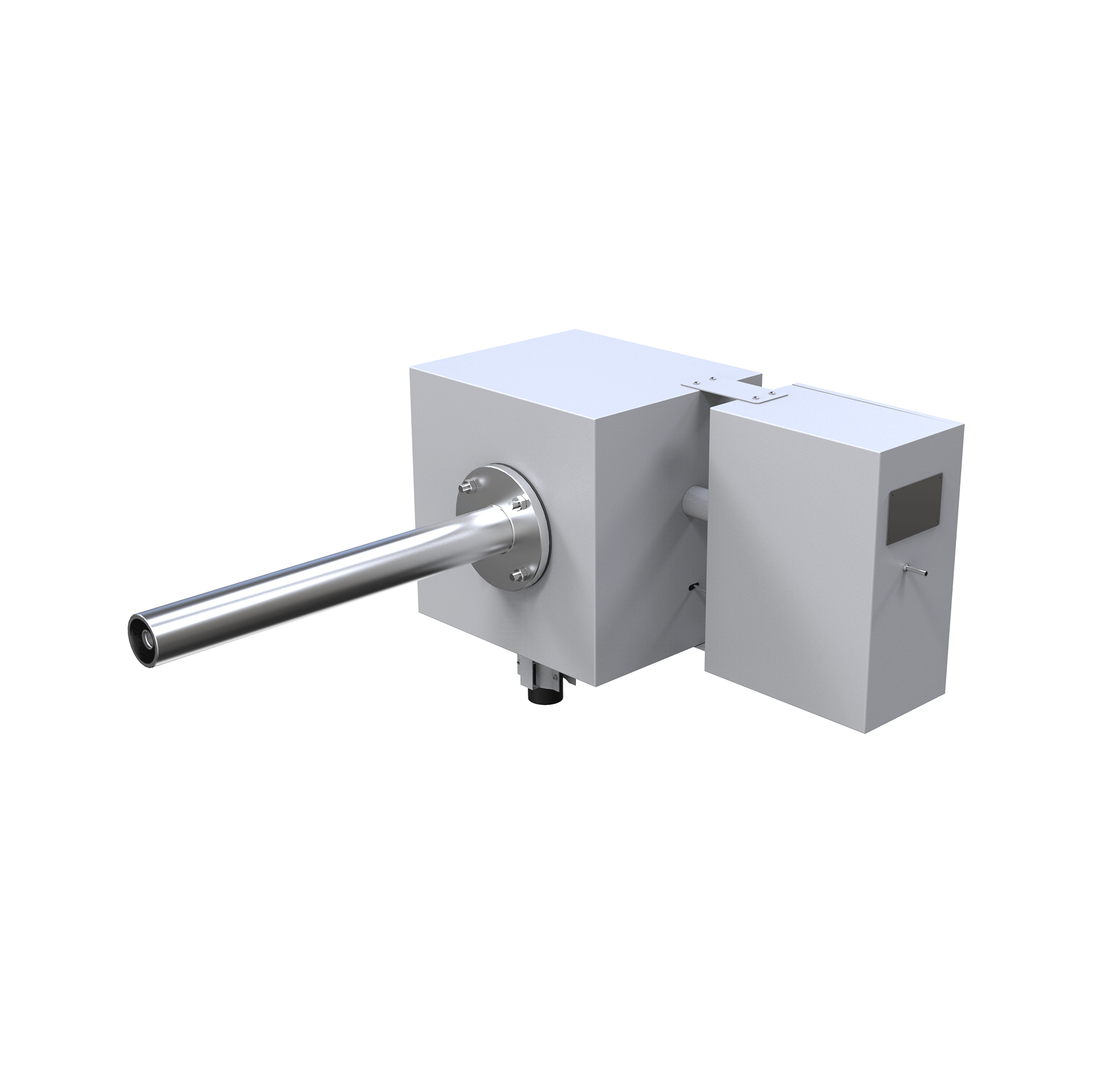

The PRO-200 High Temperature Gas Sampling Probe is suitable for the continuous collection of exhaust gas samples after the combustion process. Typically used for sampling gas with high temperature, high dust and high moisture, such as in power plant and cement production.
Working principle
The sampling probe consists of a heated sampling tube, filters, flanges, and sample probe protective cover. The sample gas been pumped into the sampling probe chamber by the sampling pump. The dust been removed by the filter. The sample gas is kept at a higher temperature throughout the whole process so as to prevent the condensation of the moisture.
Features
Titanium alloy filter probe: It is high corrosion resistance in high-temperature,high-humidity,and high-dust environments.
Heated sampling probe: The probe can effectively avoid the sampling interference or probe blockage caused by high moisture working condition;
The probe length can be customized: The probe can be easily disassembled and maintained. It can accommodate chimneys of different sizes;
High precision filtration: The probe has a large filtering area. Integrated filter element unit to prevent the filter element leakage, the probe can remove the dust particles larger than 5μm;
High efficiency internal and external purging structure: It can effectively remove the dust, avoid the probe blockage, and reduce the maintenance cost
Application
The PRO-200 Typically used for sampling gas with high temperature, high dust and high moisture, such as in power plant and cement production.
